| Media way | Auto Paper Feeding |
| Main Board | 32-bit ARM7 CPU, High-speed CACHE memory |
| Control Panel | 4.3 inch Touch Screen |
| Driver | High Speed Servo Motor |
| Max Cutting Area | 483*329mm |
| Maximum Cutting Speed | 1000mm/s |
| Cutting Force | 10-1000g (digital adjustment) |
| Mechanical Precision | 0.025mm |
| Repeatable Precision | ±0.025mm |

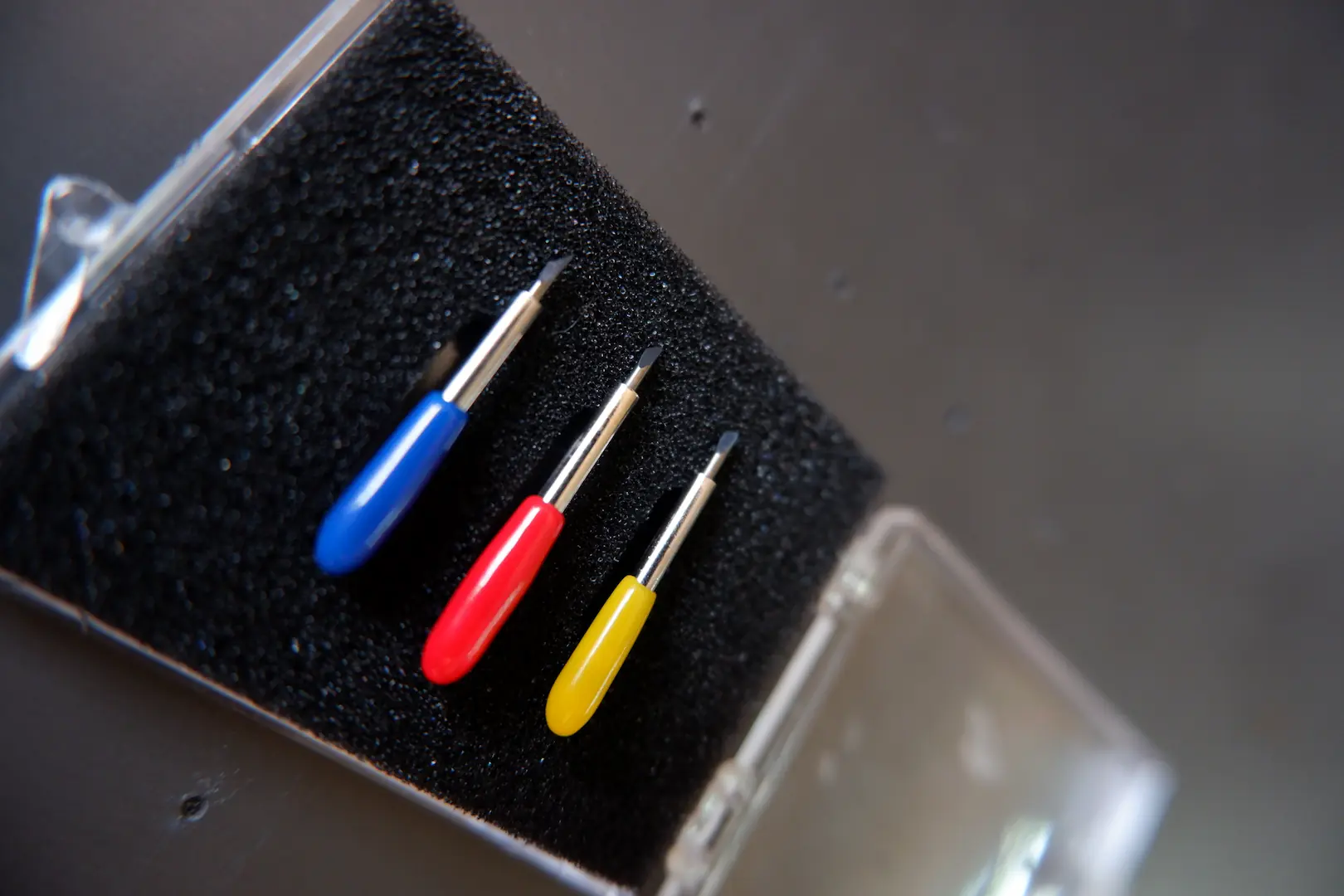

| Tools | Blade,Creasing Tool and Pen |
| Plotter Instruction | Auto Compatible DM/PL,HP/GL |
| Interface | USB/U disk/Serial Port |
| Power Supply | AC220V/110V,50HZ |
| Power Consumption | <80w |
| Cutting Media Types | Self-adhesive Sticker, Cardboard, Box, Label, Etc |
| Operating Environment | Temperature: 5-36°C, Humidity: 30%-70% |
| Package Size | 850*650*530mm |
| Gross Weight | 60Kg |
